OAuth with Microsoft

Enable Microsoft Sign-In for InstaCRUD users using Azure Active Directory (Microsoft Entra ID).

Overview​

Microsoft OAuth allows users to:

  • Sign in with Microsoft personal accounts (Outlook, Hotmail)
  • Sign in with Microsoft 365 work/school accounts
  • Use existing Microsoft identity

Step 1: Register Application in Azure​

  1. Go to Azure Portal
  2. Navigate to Microsoft Entra ID
  3. Select App registrations
  4. Click New registration

Registration Settings​

  • Name: Your application name
  • Supported account types:
    • Single tenant — Only your organization
    • Multitenant — Any organization
    • Multitenant + personal — Any org + personal Microsoft accounts (recommended for SaaS)
  • Redirect URI: Select Web and enter:
    http://localhost:8000/api/v1/signin/microsoft/callback
  1. Click Register
  2. Copy the Application (client) ID

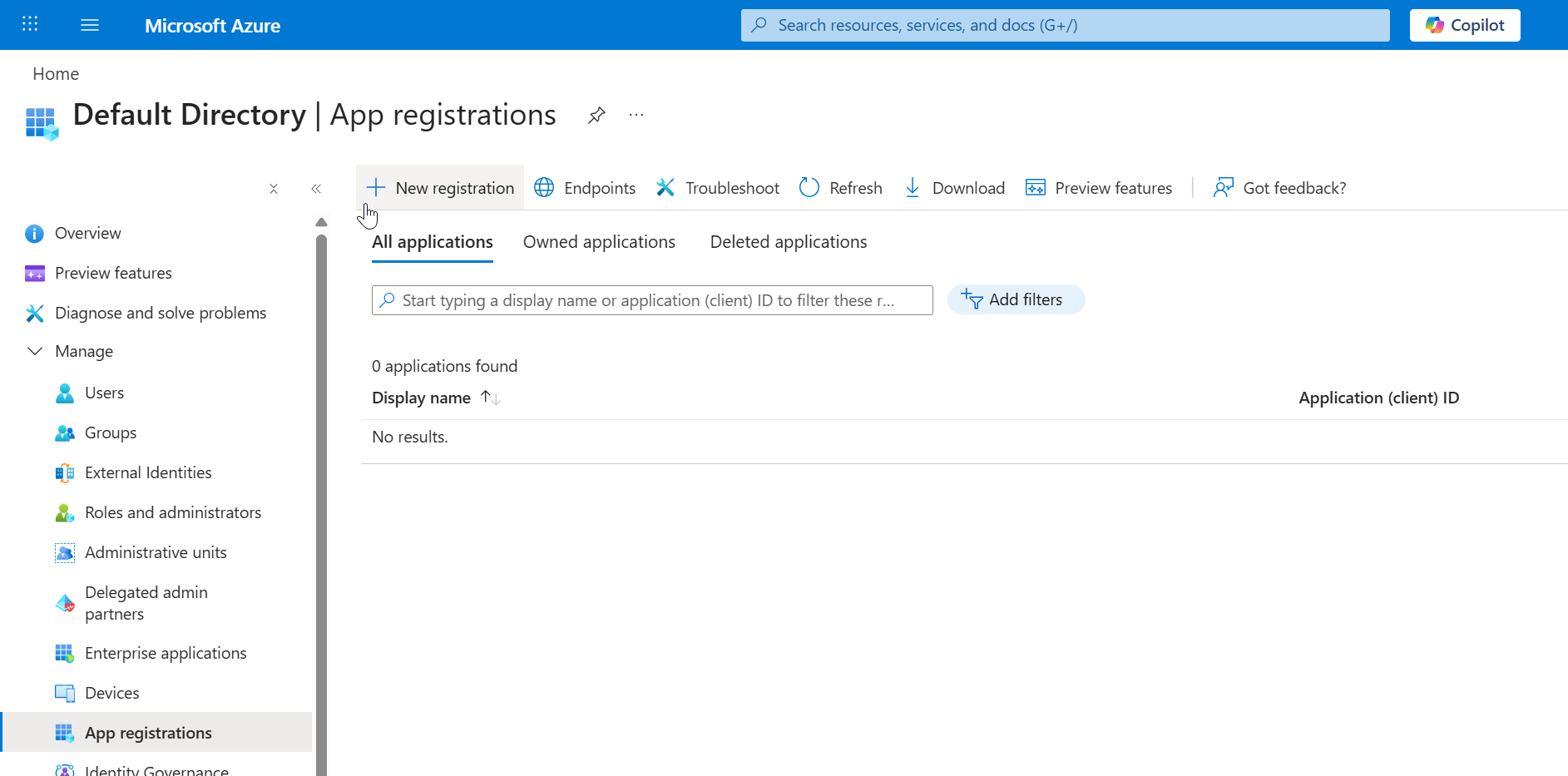

New app registration Creating a new application registration in Microsoft Entra ID.

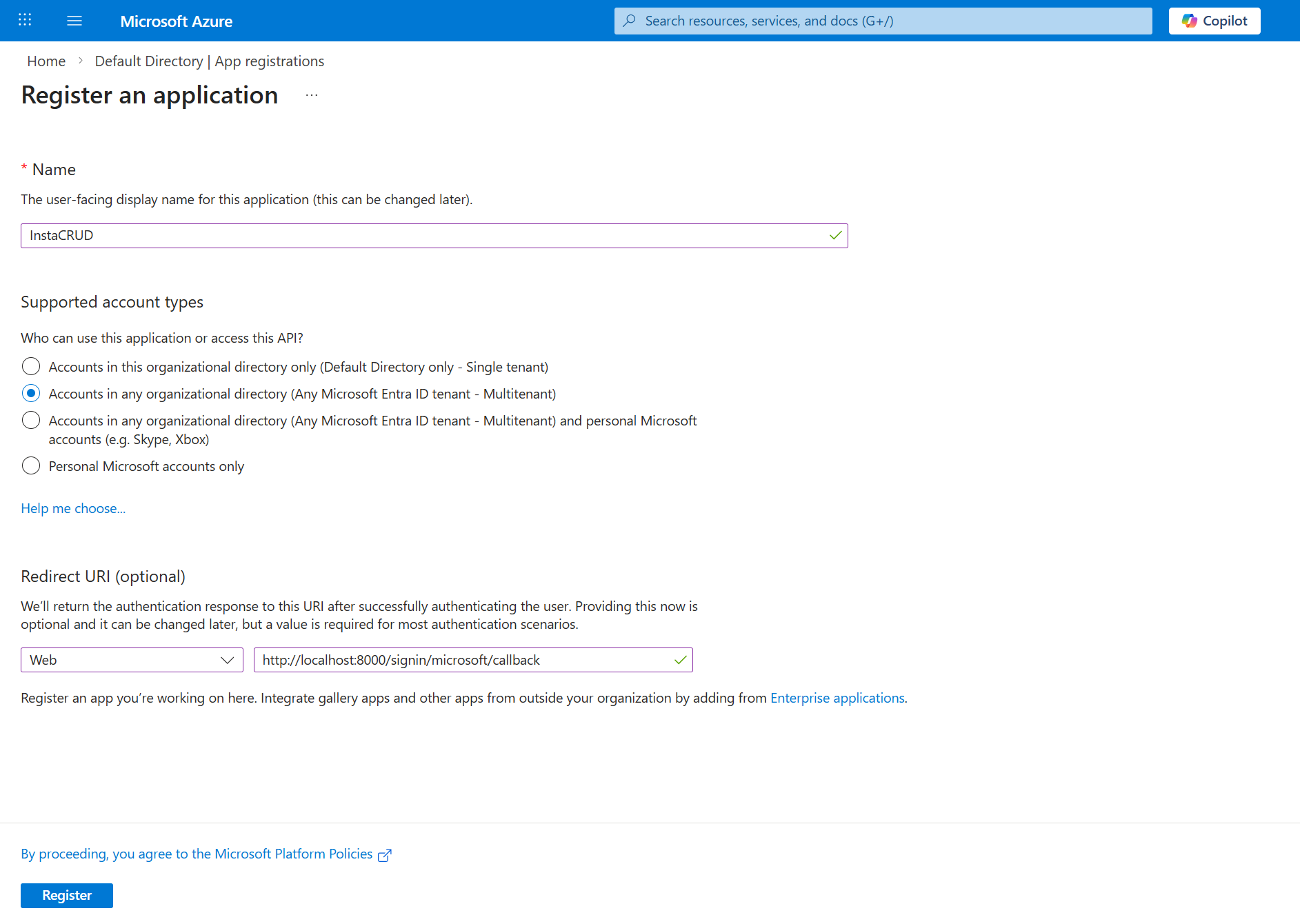

Application registration settings Configuring application registration settings including supported account types and redirect URI.

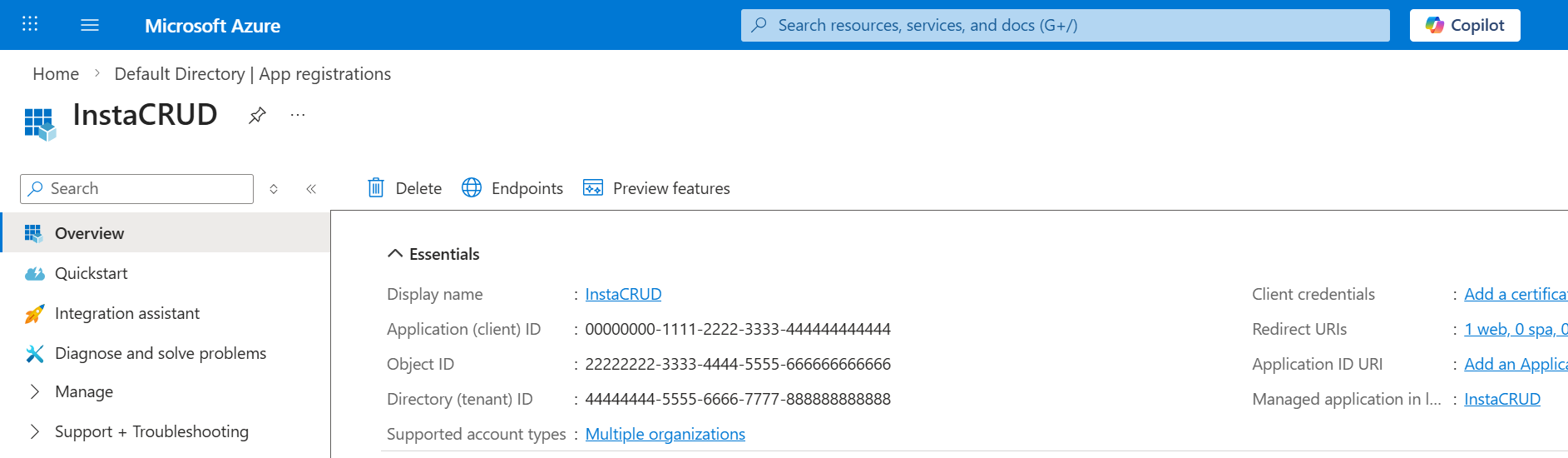

Application overview with client ID Application overview page. Copy the Application (client) ID for backend configuration.

Step 2: Create Client Secret​

  1. In your app registration, go to Certificates & secrets
  2. Click New client secret
  3. Add a description (e.g., "InstaCRUD Backend")
  4. Select expiration (24 months recommended)
  5. Click Add
  6. Copy the secret value immediately

⚠️ The secret value will not be visible again after leaving or refresh the page.

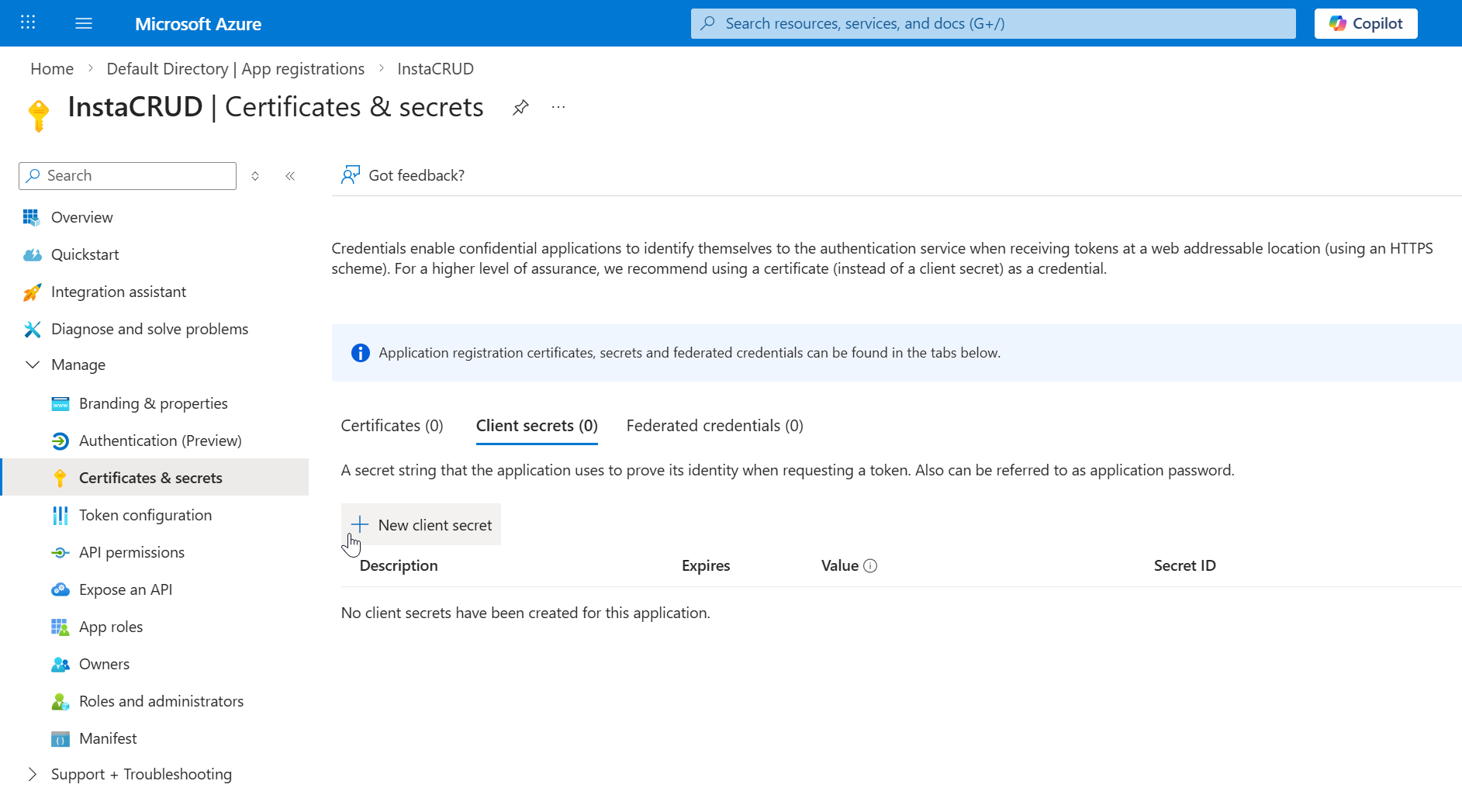

Certificates and secrets section Navigate to the Certificates & secrets section inside your app registration.

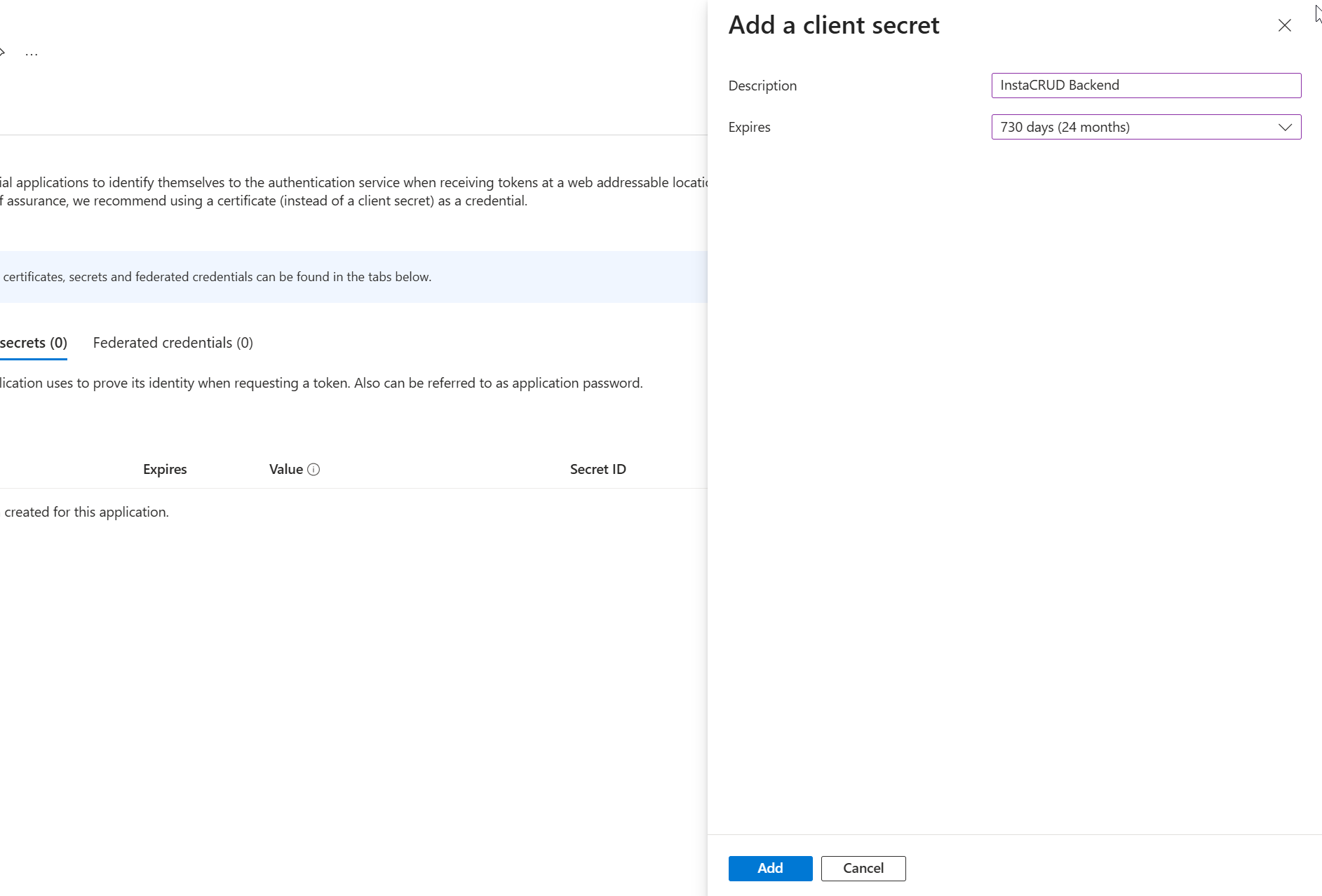

Add new client secret Creating a new client secret for InstaCRUD backend authentication.

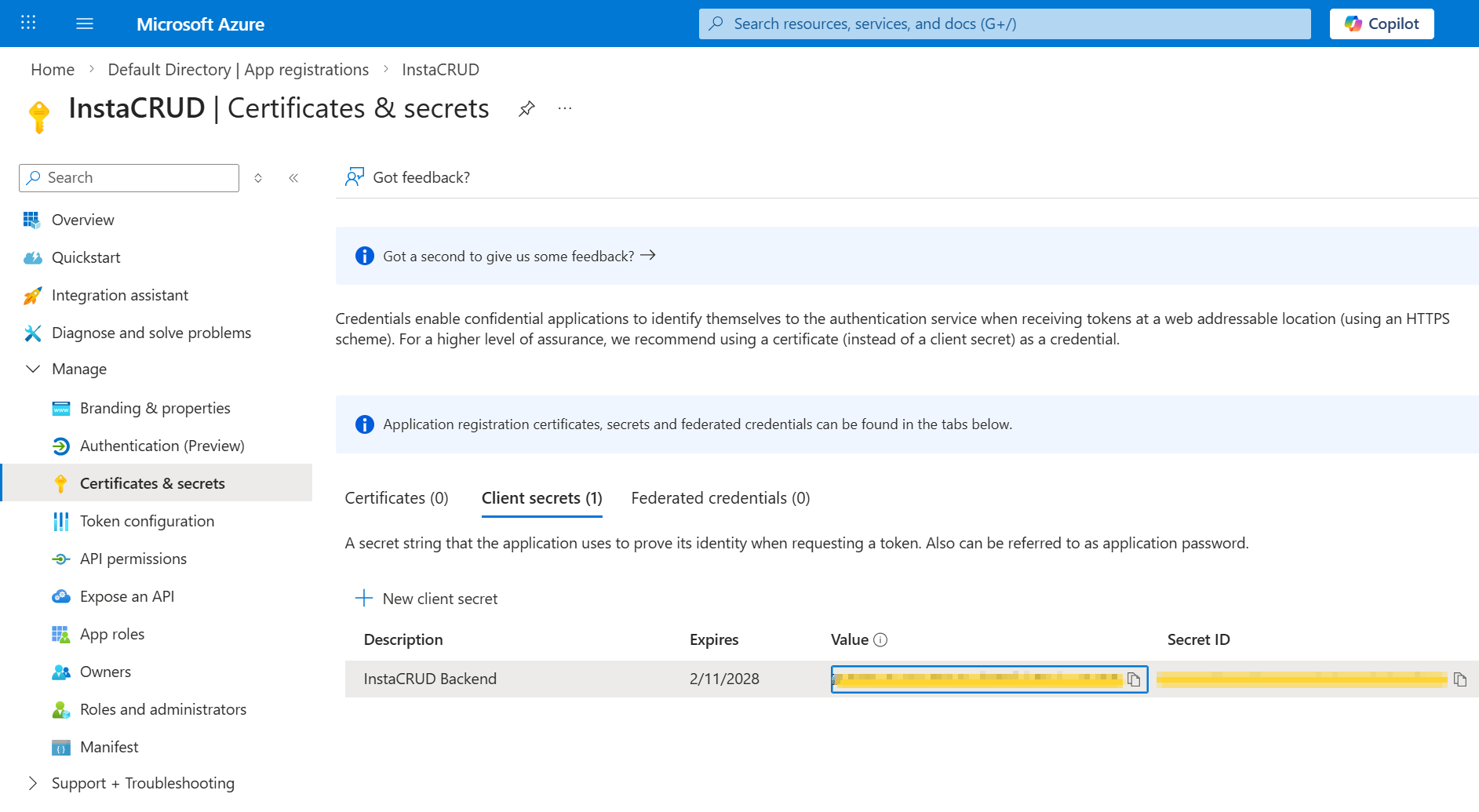

Client secret value Copy the client secret value immediately. It will not be shown again.

Step 3: Configure API Permissions​

  1. Go to API permissions
  2. Click Add a permission
  3. Select Microsoft Graph
  4. Choose Delegated permissions
  5. Add:
    • email
    • openid
    • profile
    • User.Read
  6. Click Add permissions

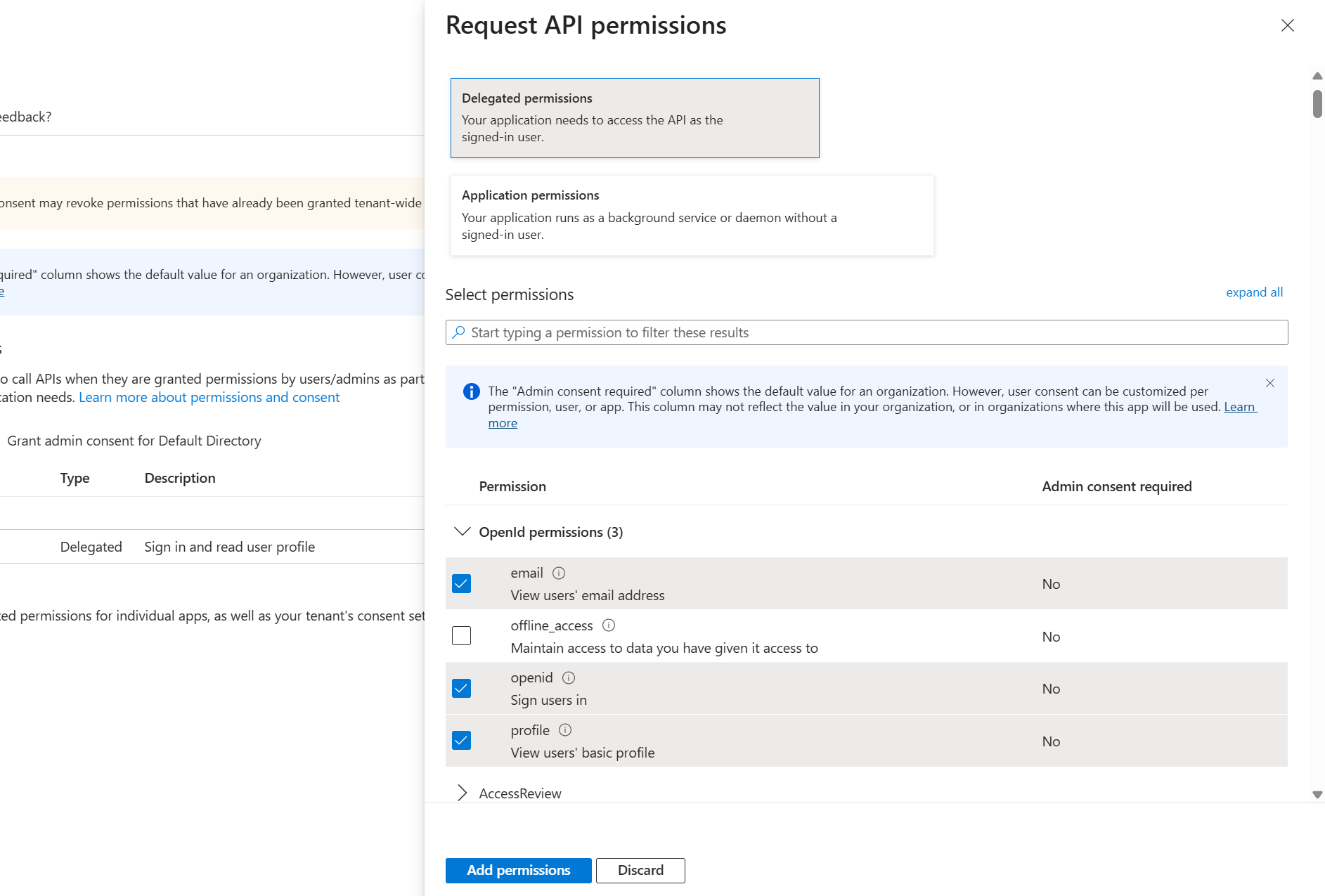

API permissions configuration Adding Microsoft Graph delegated permissions required for authentication.

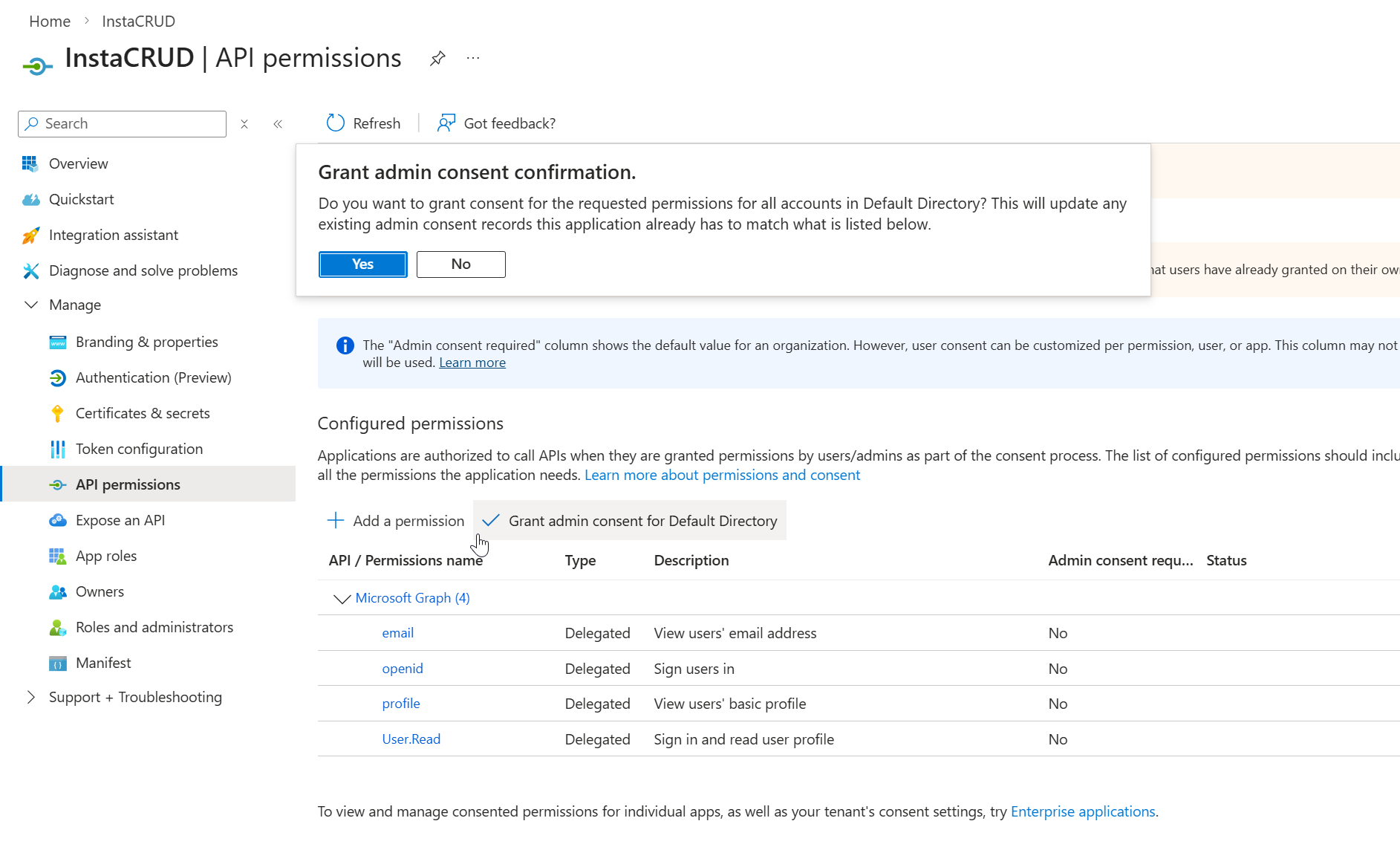

Grant admin consent Granting admin consent to allow organization-wide access without user approval prompts.

For organization-wide access without user consent prompts:

  1. Click Grant admin consent for [Organization]
  2. Confirm the action

Step 4: Configure Redirect URIs​

  1. Go to Authentication
  2. Under Web > Redirect URIs, add all environments:
http://localhost:8000/api/v1/signin/microsoft/callback
http://localhost:8000/api/v1/signup/microsoft/callback
https://your-domain.com/api/v1/signin/microsoft/callback
https://your-domain.com/api/v1/signup/microsoft/callback

  1. Under Implicit grant and hybrid flows, enable:

    • Access tokens
    • ID tokens

  2. Click Save

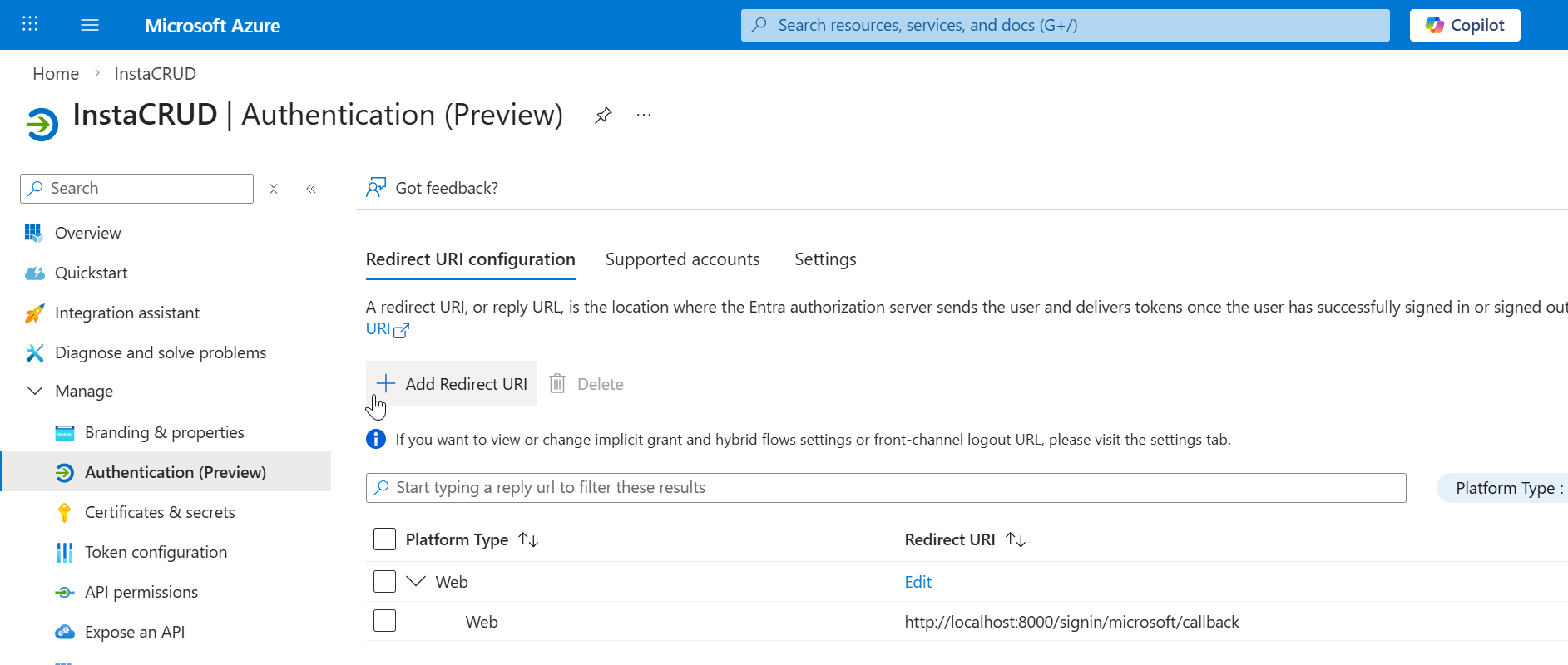

Redirect URI configuration Authentication configuration page showing existing redirect URIs.

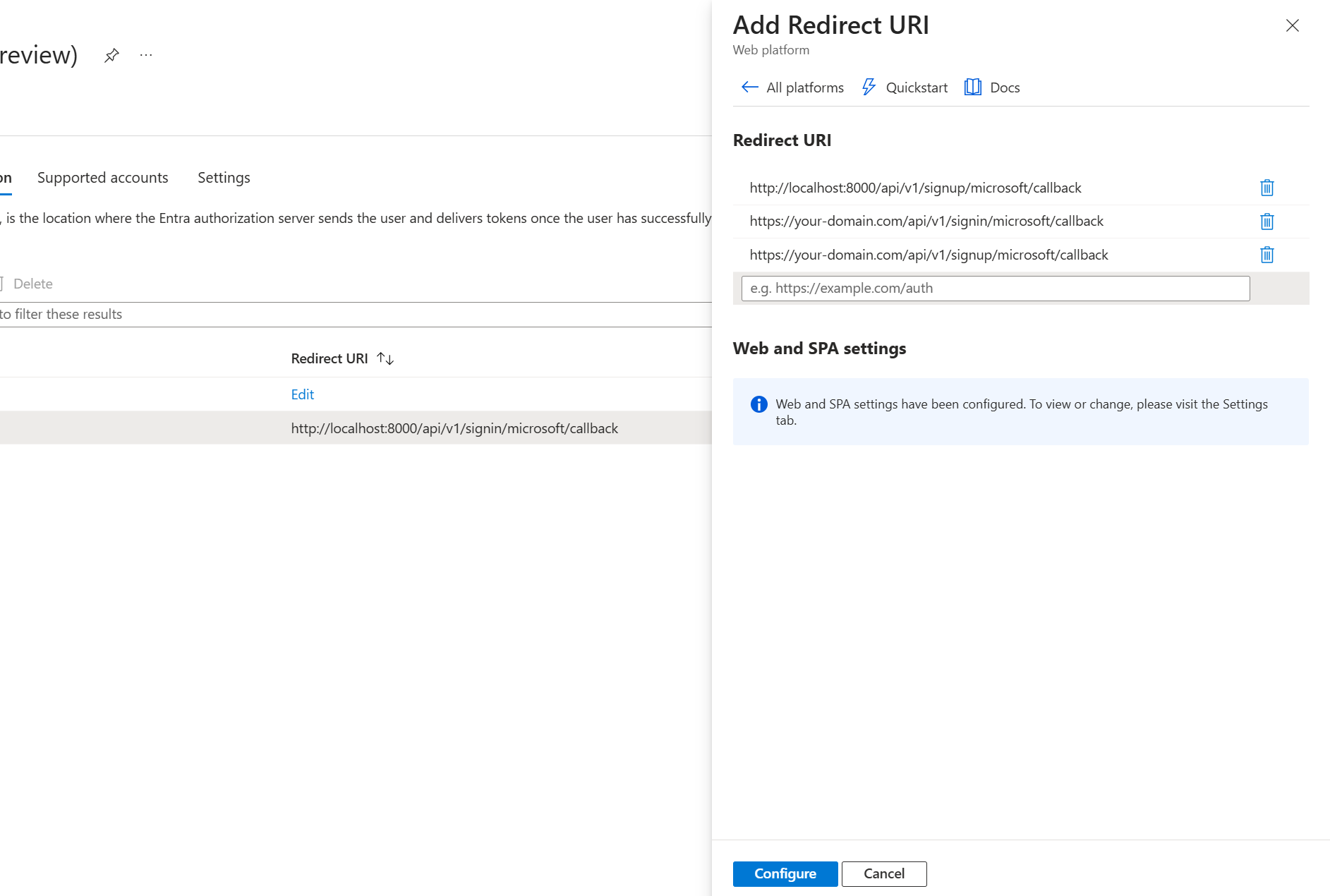

Add redirect URI Adding redirect URIs for different environments.

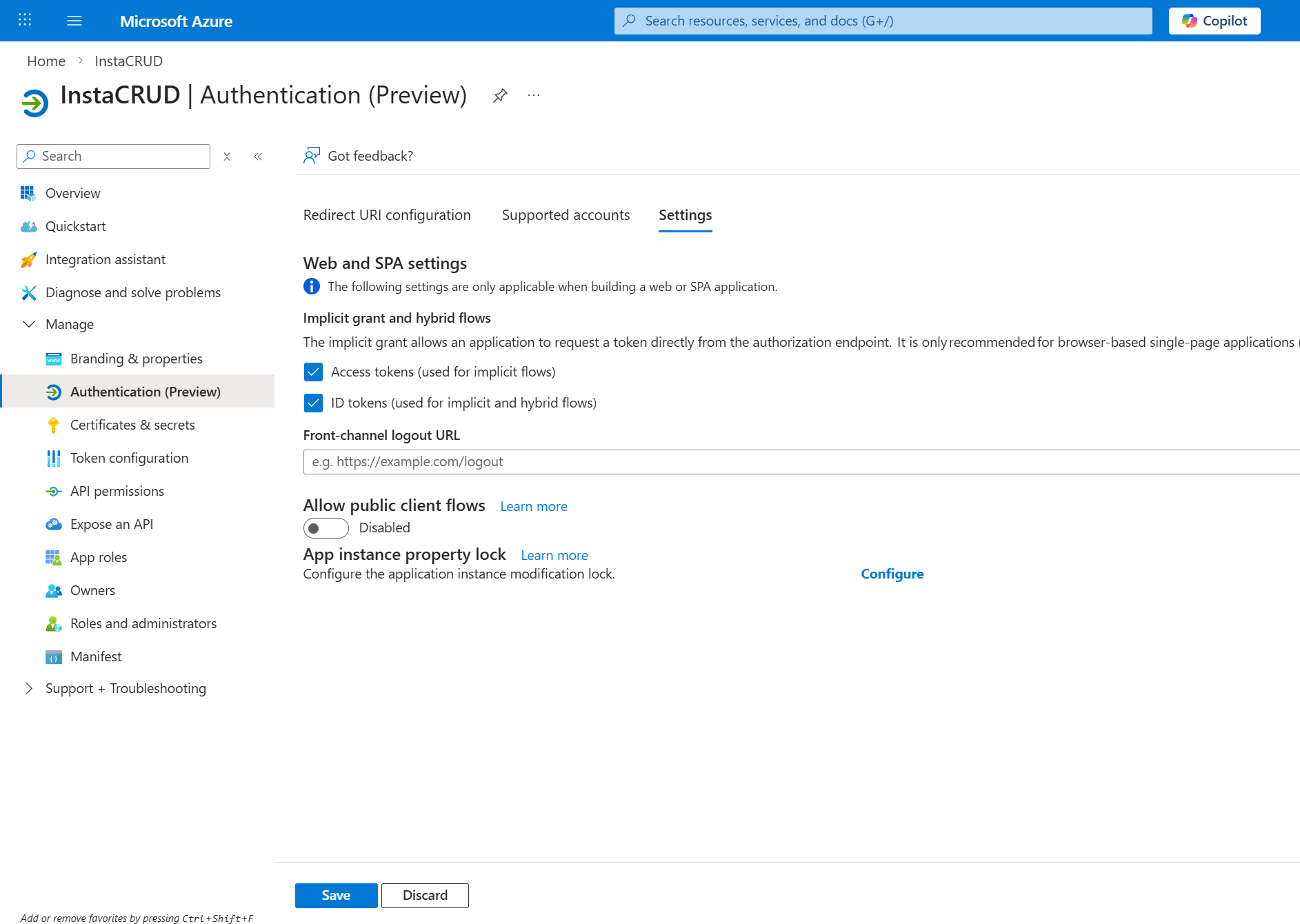

Implicit grant and hybrid flows Enabling ID tokens and Access tokens under Implicit grant and hybrid flows.

Step 5: Configure InstaCRUD​

Add credentials to your backend .env file:

# Microsoft OAuth
MS_CLIENT_ID=your-application-client-id
MS_CLIENT_SECRET=your-client-secret-value
MS_TENANT_ID=common

Tenant ID Options​

ValueDescription
commonAny Microsoft account (personal + work/school)
organizationsOnly work/school accounts
consumersOnly personal Microsoft accounts
{tenant-id}Specific organization only

Step 6: Verify Configuration​

Restart the backend server. The OAuth endpoint should be available:

GET /api/v1/signin/microsoft

This redirects users to Microsoft's consent screen.

Environment-Specific Setup​

Local Development​

Redirect URIs:
http://localhost:8000/api/v1/signin/microsoft/callback
http://localhost:8000/api/v1/signup/microsoft/callback

ngrok Development​

Redirect URIs:
https://your-backend.ngrok-free.app/api/v1/signin/microsoft/callback
https://your-backend.ngrok-free.app/api/v1/signup/microsoft/callback

Production​

Redirect URIs:
https://api.your-domain.com/api/v1/signin/microsoft/callback
https://api.your-domain.com/api/v1/signup/microsoft/callback

Single-Tenant Configuration​

For internal applications restricted to one organization:

  1. Set Supported account types to Single tenant
  2. Use your organization's tenant ID:
MS_TENANT_ID=your-tenant-id-guid

Find your tenant ID in:

Azure Portal → Microsoft Entra ID → Overview

Troubleshooting​

"AADSTS50011: Reply URL Mismatch"​

  • Redirect URI must match exactly
  • Check for trailing slashes
  • Verify protocol (http vs https)

"AADSTS7000215: Invalid Client Secret"​

  • Client secret may have expired
  • Create a new secret and update .env
  • Ensure no extra whitespace

"AADSTS700016: Application Not Found"​

  • Verify MS_CLIENT_ID is correct
  • Check the application exists in the correct tenant
  • Grant admin consent in Azure Portal
  • Ensure required permissions are configured

Security Recommendations​

  1. Rotate secrets regularly — Track expiration dates
  2. Use separate app registrations — One for development, one for production
  3. Limit permissions — Only request required scopes
  4. Monitor sign-ins — Review Entra ID sign-in logs

Summary​

Microsoft OAuth configuration requires:

  1. Azure app registration with correct account type
  2. Client secret (keep secure, track expiration)
  3. API permissions for user profile access
  4. Redirect URIs for all environments
  5. Environment variables in InstaCRUD backend
